VHDL 예제들

ElectricShock 2017. 12. 5. 14:54

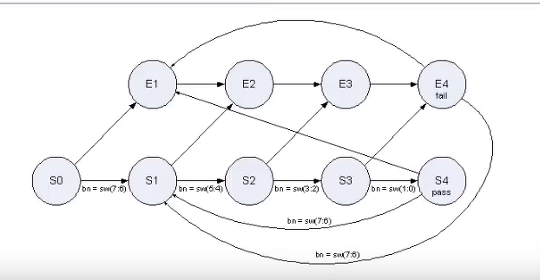

The first correct button selected from btn(2:0)

will be the switch setting sw(7:6) where valid settings are "00","01","10" corresponding to btn(0), btn(1), and btn(2) respectively.

The second correct button selected from btn(2:0) will be the switch setting sw(5:4).

The third correct button selected from btn(2:0) will be the switch setting sw(3:2).

The fourth correct button selected from btn(2:0) will be the switch setting sw(1:0).

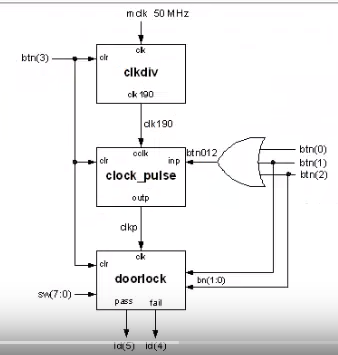

DoorLock VHDL.txt



FPGA ADC

http://www.pyroelectro.com/tutorials/cpld_fpga_adc_interface/


Naver

[졸업작품 fpga 신호등]
