▼ Code File Link

http://instructables.tistory.com/723













/*

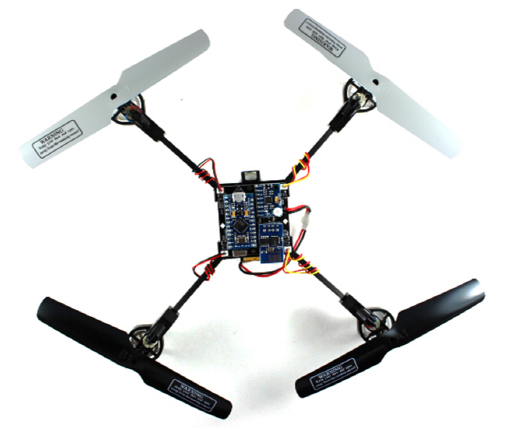

MultiWiiCopter by Alexandre Dubus

www.multiwii.com

March  2013     V2.2

 This program is free software: you can redi stribute it and/or modify

 it under the terms of the GNU General Public License as published by

 the Free Software Foundation, either version 3 of the License, or

 any later version. see <http://www.gnu.org/licenses/>

*/


#include <avr/io.h>

#include <Wire.h>


#include "config.h"        //추가할것

#include "def.h"


#include <avr/pgmspace.h>

#define  VERSION  220


#if defined(AIR)

volatile uint16_t serialRcValue[RC_CHANS]

= {1502, 1502, 1502, 1502, 1502, 1502, 1502, 1502};

uint8_t flightState = 0;

#endif


/*********** RC alias *****************/

enum rc

{

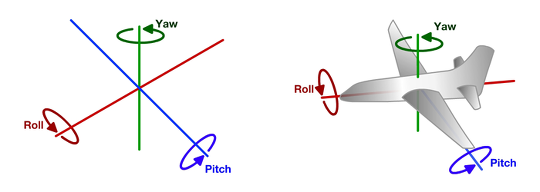

  ROLL,                    //Y축 회전

  PITCH,                   //X축 회전

  YAW,                    //Z축 회전

  THROTTLE,            //이륙,착륙 담당

  AUX1,

  AUX2,

  AUX3,

  AUX4

};


enum pid

{

  PIDROLL,

  PIDPITCH,

  PIDYAW,

  PIDALT,

  PIDPOS,

  PIDPOSR,

  PIDNAVR,

  PIDLEVEL,

  PIDMAG,

  PIDVEL,     // not used currently

  PIDITEMS

};


const char pidnames[] PROGMEM =

  "ROLL;"

  "PITCH;"

  "YAW;"

  "ALT;"

  "Pos;"

  "PosR;"

  "NavR;"

  "LEVEL;"

  "MAG;"

  "VEL;"

;


enum box

{

  BOXARM,

  #if ACC

    BOXANGLE,

    BOXHORIZON,

  #endif


  #if BARO && (!defined(SUPPRESS_BARO_ALTHOLD))

    BOXBARO,

  #endif


  #ifdef VARIOMETER

    BOXVARIO,

  #endif


  #if MAG

    BOXMAG,

    BOXHEADFREE,

    BOXHEADADJ, // acquire heading for HEADFREE mode

  #endif


  #if defined(SERVO_TILT) || defined(GIMBAL)  || defined(SERVO_MIX_TILT)

    BOXCAMSTAB,

  #endif


  #if defined(CAMTRIG)

    BOXCAMTRIG,

  #endif


  #if GPS

    BOXGPSHOME,

    BOXGPSHOLD,

  #endif


  #if defined(FIXEDWING) || defined(HELICOPTER)

    BOXPASSTHRU,

  #endif


  #if defined(BUZZER)

    BOXBEEPERON,

  #endif


  #if defined(LED_FLASHER)

    BOXLEDMAX, // we want maximum illumination

    BOXLEDLOW, // low/no lights

  #endif


  #if defined(LANDING_LIGHTS_DDR)

    BOXLLIGHTS, // enable landing lights at any altitude

  #endif


  #ifdef INFLIGHT_ACC_CALIBRATION

    BOXCALIB,

  #endif


  #ifdef GOVERNOR_P

    BOXGOV,

  #endif


  #ifdef OSD_SWITCH

    BOXOSD,

  #endif


  CHECKBOXITEMS

};




const char boxnames[] PROGMEM = // names for dynamic generation of config GUI

  "ARM;"

  #if ACC

    "ANGLE;"

    "HORIZON;"

  #endif


  #if BARO && (!defined(SUPPRESS_BARO_ALTHOLD))

    "BARO;"

  #endif


  #ifdef VARIOMETER

    "VARIO;"

  #endif


  #if MAG                //Sensors.ino 안에 MAG

    "MAG;"

    "HEADFREE;"

    "HEADADJ;"

  #endif


  #if defined(SERVO_TILT) || defined(GIMBAL)|| defined(SERVO_MIX_TILT)

    "CAMSTAB;"

  #endif



  #if defined(CAMTRIG)        //CAM Trig 정의

    "CAMTRIG;"

  #endif


  #if GPS

    "GPS HOME;"                //GPS.ino 안에서 GPS_HOME_MODE 로 쓰인다.

    "GPS HOLD;"

  #endif


  #if defined(FIXEDWING) || defined(HELICOPTER)

    "PASSTHRU;"

  #endif


  #if defined(BUZZER)        //Alarms.ino 안에서 Buzzer로 쓰인다.

    "BEEPER;"

  #endif


  #if defined(LED_FLASHER)

    "LEDMAX;"

    "LEDLOW;"

  #endif


  #if defined(LANDING_LIGHTS_DDR)

    "LLIGHTS;"

  #endif


  #ifdef INFLIGHT_ACC_CALIBRATION

    "CALIB;"

  #endif


  #ifdef GOVERNOR_P

    "GOVERNOR;"

  #endif


  #ifdef OSD_SWITCH

    "OSD SW;"

  #endif

;




const uint8_t boxids[] PROGMEM = {// permanent IDs associated to boxes. This way, you can rely on an ID number to identify a BOX function.

  0, //"ARM;"

  #if ACC

    1, //"ANGLE;"

    2, //"HORIZON;"

  #endif


  #if BARO && (!defined(SUPPRESS_BARO_ALTHOLD))

    3, //"BARO;"

  #endif


  #ifdef VARIOMETER

    4, //"VARIO;"

  #endif


  #if MAG

    5, //"MAG;"

    6, //"HEADFREE;"

    7, //"HEADADJ;"

  #endif


  #if defined(SERVO_TILT) || defined(GIMBAL)|| defined(SERVO_MIX_TILT)

    8, //"CAMSTAB;"

  #endif


  #if defined(CAMTRIG)

    9, //"CAMTRIG;"

  #endif


  #if GPS

    10, //"GPS HOME;"

    11, //"GPS HOLD;"

  #endif


  #if defined(FIXEDWING) || defined(HELICOPTER)

    12, //"PASSTHRU;"

  #endif


  #if defined(BUZZER)

    13, //"BEEPER;"

  #endif


  #if defined(LED_FLASHER)

    14, //"LEDMAX;"

    15, //"LEDLOW;"

  #endif


  #if defined(LANDING_LIGHTS_DDR)

    16, //"LLIGHTS;"

  #endif


  #ifdef INFLIGHT_ACC_CALIBRATION

    17, //"CALIB;"

  #endif


  #ifdef GOVERNOR_P

    18, //"GOVERNOR;"

  #endif


  #ifdef OSD_SWITCH

    19, //"OSD_SWITCH;"

  #endif

};



static uint32_t currentTime = 0;

static uint16_t previousTime = 0;

static uint16_t cycleTime = 0;     // this is the number in micro second to achieve a full loop, it can differ a little and is taken into account in the PID loop

static uint16_t calibratingA = 0;  // the calibration is done in the main loop. Calibrating decreases at each cycle down to 0, then we enter in a normal mode.

static uint16_t calibratingB = 0;  // baro calibration = get new ground pressure value

static uint16_t calibratingG;

static uint16_t acc_1G;            // this is the 1G measured acceleration

static uint16_t acc_25deg;

static int16_t  gyroADC[3],accADC[3],accSmooth[3],magADC[3];

static int16_t  heading,magHold,headFreeModeHold; // [-180;+180]

static uint8_t  vbat;                   // battery voltage in 0.1V steps

static uint8_t  vbatMin = VBATNOMINAL;  // lowest battery voltage in 0.1V steps

static uint8_t  rcOptions[CHECKBOXITEMS];

static int32_t  BaroAlt,EstAlt,AltHold; // in cm

static int16_t  BaroPID = 0;

static int16_t  errorAltitudeI = 0;

static int16_t  vario = 0;              // variometer in cm/s


#if defined(ARMEDTIMEWARNING)

  static uint32_t  ArmedTimeWarningMicroSeconds = 0;

#endif


static int16_t  debug[4];

static int16_t  sonarAlt; //to think about the unit


//-------------------------------------------------------------------------

// Calibration flag value

uint8_t calibration_flag;

//-------------------------------------------------------------------------


struct flags_struct {

  uint8_t OK_TO_ARM :1 ;

  uint8_t ARMED :1 ;

  uint8_t I2C_INIT_DONE :1 ; // For i2c gps we have to now when i2c init is done, so we can update parameters to the i2cgps from eeprom (at startup it is done in setup())

  uint8_t ACC_CALIBRATED :1 ;

  uint8_t NUNCHUKDATA :1 ;

  uint8_t ANGLE_MODE :1 ;

  uint8_t HORIZON_MODE :1 ;

  uint8_t MAG_MODE :1 ;

  uint8_t BARO_MODE :1 ;

  uint8_t GPS_HOME_MODE :1 ;

  uint8_t GPS_HOLD_MODE :1 ;

  uint8_t HEADFREE_MODE :1 ;

  uint8_t PASSTHRU_MODE :1 ;

  uint8_t GPS_FIX :1 ;

  uint8_t GPS_FIX_HOME :1 ;

  uint8_t SMALL_ANGLES_25 :1 ;

  uint8_t CALIBRATE_MAG :1 ;

  uint8_t VARIO_MODE :1;

} f;


//for log

#if defined(LOG_VALUES) || defined(LCD_TELEMETRY)

  static uint16_t cycleTimeMax = 0;       // highest ever cycle timen

  static uint16_t cycleTimeMin = 65535;   // lowest ever cycle timen

  static uint16_t powerMax = 0;           // highest ever current;

  static int32_t  BAROaltMax;         // maximum value

#endif

#if defined(LOG_VALUES) || defined(LCD_TELEMETRY) || defined(ARMEDTIMEWARNING)  || defined(LOG_PERMANENT)

  static uint32_t armedTime = 0;

#endif


static int16_t  i2c_errors_count = 0;

static int16_t  annex650_overrun_count = 0;


// **********************

//Automatic ACC Offset Calibration

// **********************

#if defined(INFLIGHT_ACC_CALIBRATION)

  static uint16_t InflightcalibratingA = 0;

  static int16_t AccInflightCalibrationArmed;

  static uint16_t AccInflightCalibrationMeasurementDone = 0;

  static uint16_t AccInflightCalibrationSavetoEEProm = 0;

  static uint16_t AccInflightCalibrationActive = 0;

#endif


// **********************

// power meter

// **********************

#if defined(POWERMETER)

#define PMOTOR_SUM 8                     // index into pMeter[] for sum

  static uint32_t pMeter[PMOTOR_SUM + 1];  // we use [0:7] for eight motors,one extra for sum

  static uint8_t pMeterV;                  // dummy to satisfy the paramStruct logic in ConfigurationLoop()

  static uint32_t pAlarm;                  // we scale the eeprom value from [0:255] to this value we can directly compare to the sum in pMeter[6]

  static uint16_t powerValue = 0;          // last known current

#endif

static uint16_t intPowerMeterSum, intPowerTrigger1;


// **********************

// telemetry

// **********************

#if defined(LCD_TELEMETRY)

  static uint8_t telemetry = 0;

  static uint8_t telemetry_auto = 0;

#endif

#ifdef LCD_TELEMETRY_STEP

  static char telemetryStepSequence []  = LCD_TELEMETRY_STEP;

  static uint8_t telemetryStepIndex = 0;

#endif


// ******************

// rc functions

// ******************

#define MINCHECK 1100

#define MAXCHECK 1900


#define ROL_LO  (1<<(2*ROLL))

#define ROL_CE  (3<<(2*ROLL))

#define ROL_HI  (2<<(2*ROLL))

#define PIT_LO  (1<<(2*PITCH))

#define PIT_CE  (3<<(2*PITCH))

#define PIT_HI  (2<<(2*PITCH))

#define YAW_LO  (1<<(2*YAW))

#define YAW_CE  (3<<(2*YAW))

#define YAW_HI  (2<<(2*YAW))

#define THR_LO  (1<<(2*THROTTLE))

#define THR_CE  (3<<(2*THROTTLE))

#define THR_HI  (2<<(2*THROTTLE))


static int16_t failsafeEvents = 0;

volatile int16_t failsafeCnt = 0;


static int16_t rcData[RC_CHANS];    // interval [1000;2000]

static int16_t rcCommand[4];        // interval [1000;2000] for THROTTLE and [-500;+500] for ROLL/PITCH/YAW

static int16_t lookupPitchRollRC[6];// lookup table for expo & RC rate PITCH+ROLL

static int16_t lookupThrottleRC[11];// lookup table for expo & mid THROTTLE

static uint16_t rssi;               // range: [0;1023]


#if defined(SPEKTRUM)

  volatile uint8_t  spekFrameFlags;

  volatile uint32_t spekTimeLast;

#endif


#if defined(OPENLRSv2MULTI)

  static uint8_t pot_P,pot_I; // OpenLRS onboard potentiometers for P and I trim or other usages

#endif


// **************

// gyro+acc IMU

// **************

static int16_t gyroData[3] = {0,0,0};

static int16_t gyroZero[3] = {0,0,0};

static int16_t angle[2]    = {0,0};  // absolute angle inclination in multiple of 0.1 degree    180 deg = 1800


// *************************

// motor and servo functions

// *************************

static int16_t axisPID[3];

static int16_t motor[NUMBER_MOTOR];

#if defined(SERVO)

  static int16_t servo[8] = {1500,1500,1500,1500,1500,1500,1500,1500};

#endif


// ************************

// EEPROM Layout definition

// ************************

static uint8_t dynP8[3], dynD8[3];


static struct {

  uint8_t currentSet;

  int16_t accZero[3];

  int16_t magZero[3];

  uint8_t checksum;      // MUST BE ON LAST POSITION OF STRUCTURE !

} global_conf;



static struct {

  uint8_t checkNewConf;

  uint8_t P8[PIDITEMS], I8[PIDITEMS], D8[PIDITEMS];

  uint8_t rcRate8;

  uint8_t rcExpo8;

  uint8_t rollPitchRate;

  uint8_t yawRate;

  uint8_t dynThrPID;

  uint8_t thrMid8;

  uint8_t thrExpo8;

  int16_t angleTrim[2];

  uint16_t activate[CHECKBOXITEMS];

  uint8_t powerTrigger1;

  #ifdef FLYING_WING

    uint16_t wing_left_mid;

    uint16_t wing_right_mid;

  #endif

  #ifdef TRI

    uint16_t tri_yaw_middle;

  #endif

  #if defined HELICOPTER || defined(AIRPLANE)|| defined(SINGLECOPTER)|| defined(DUALCOPTER)

    int16_t servoTrim[8];

  #endif

  #if defined(GYRO_SMOOTHING)

    uint8_t Smoothing[3];

  #endif

  #if defined (FAILSAFE)

    int16_t failsafe_throttle;

  #endif

  #ifdef VBAT

    uint8_t vbatscale;

    uint8_t vbatlevel_warn1;

    uint8_t vbatlevel_warn2;

    uint8_t vbatlevel_crit;

    uint8_t no_vbat;

  #endif

  #ifdef POWERMETER

    uint16_t psensornull;

    uint16_t pleveldivsoft;

    uint16_t pleveldiv;

    uint8_t pint2ma;

  #endif

  #ifdef CYCLETIME_FIXATED

    uint16_t cycletime_fixated;

  #endif

  #ifdef MMGYRO

    uint8_t mmgyro;

  #endif

  #ifdef ARMEDTIMEWARNING

    uint16_t armedtimewarning;

  #endif

  int16_t minthrottle;

  #ifdef GOVERNOR_P

   int16_t governorP;

   int16_t governorD;

   int8_t  governorR;

  #endif

  uint8_t  checksum;      // MUST BE ON LAST POSITION OF CONF STRUCTURE !

} conf;


#ifdef LOG_PERMANENT

static struct

{

  uint16_t arm;           // #arm events

  uint16_t disarm;        // #disarm events

  uint16_t start;         // #powercycle/reset/initialize events

  uint32_t armed_time ;   // copy of armedTime @ disarm

  uint32_t lifetime;      // sum (armed) lifetime in seconds

  uint16_t failsafe;      // #failsafe state @ disarm

  uint16_t i2c;           // #i2c errs state @ disarm

  uint8_t  running;       // toggle on arm & disarm to monitor for clean shutdown vs. powercut

  uint8_t  checksum;      // MUST BE ON LAST POSITION OF CONF STRUCTURE !

} plog;

#endif


// **********************

// GPS common variables

// **********************

  static int32_t  GPS_coord[2];

  static int32_t  GPS_home[2];

  static int32_t  GPS_hold[2];

  static uint8_t  GPS_numSat;

  static uint16_t GPS_distanceToHome;                          // distance to home  - unit: meter

  static int16_t  GPS_directionToHome;                         // direction to home - unit: degree

  static uint16_t GPS_altitude;                                // GPS altitude      - unit: meter

  static uint16_t GPS_speed;                                   // GPS speed         - unit: cm/s

  static uint8_t  GPS_update = 0;                              // a binary toogle to distinct a GPS position update

  static int16_t  GPS_angle[2] = { 0, 0};                      // the angles that must be applied for GPS correction

  static uint16_t GPS_ground_course = 0;                       //                   - unit: degree*10

  static uint8_t  GPS_Present = 0;                             // Checksum from Gps serial

  static uint8_t  GPS_Enable  = 0;


  #define LAT  0

  #define LON  1

  // The desired bank towards North (Positive) or South (Negative) : latitude

  // The desired bank towards East (Positive) or West (Negative)   : longitude

  static int16_t  nav[2];

  static int16_t  nav_rated[2];    //Adding a rate controller to the navigation to make it smoother


  // default POSHOLD control gains

  #define POSHOLD_P              .11

  #define POSHOLD_I              0.0

  #define POSHOLD_IMAX           20        // degrees


  #define POSHOLD_RATE_P         2.0

  #define POSHOLD_RATE_I         0.08      // Wind control

  #define POSHOLD_RATE_D         0.045     // try 2 or 3 for POSHOLD_RATE 1

  #define POSHOLD_RATE_IMAX      20        // degrees


  // default Navigation PID gains

  #define NAV_P                  1.4

  #define NAV_I                  0.20      // Wind control

  #define NAV_D                  0.08      //

  #define NAV_IMAX               20        // degrees


  /////////////////////////////////////////////////////////////////////////////////////////////////////////////

  // Serial GPS only variables

  //navigation mode

  #define NAV_MODE_NONE          0

  #define NAV_MODE_POSHOLD       1

  #define NAV_MODE_WP            2

  static uint8_t nav_mode = NAV_MODE_NONE; // Navigation mode



  static uint8_t alarmArray[16];           // array



#if BARO

  static int32_t baroPressure;

  static int32_t baroTemperature;

  static int32_t baroPressureSum;

#endif



void annexCode() { // this code is excetuted at each loop and won't interfere with control loop if it lasts less than 650 microseconds

  static uint32_t calibratedAccTime;

  uint16_t tmp,tmp2;

  uint8_t axis,prop1,prop2;


  #define BREAKPOINT 1500

  // PITCH & ROLL only dynamic PID adjustemnt,  depending on throttle value

  if (rcData[THROTTLE]<BREAKPOINT) {

    prop2 = 100;

  } else {

    if (rcData[THROTTLE]<2000) {

      prop2 = 100 - (uint16_t)conf.dynThrPID*(rcData[THROTTLE]-BREAKPOINT)/(2000-BREAKPOINT);

    } else {

      prop2 = 100 - conf.dynThrPID;

    }

  }


  for(axis=0;axis<3;axis++) {

    tmp = min(abs(rcData[axis]-MIDRC),500);

    #if defined(DEADBAND)

      if (tmp>DEADBAND) { tmp -= DEADBAND; }

      else { tmp=0; }

    #endif

    if(axis!=2) { //ROLL & PITCH

      tmp2 = tmp/100;

      rcCommand[axis] = lookupPitchRollRC[tmp2] + (tmp-tmp2*100) * (lookupPitchRollRC[tmp2+1]-lookupPitchRollRC[tmp2]) / 100;

      prop1 = 100-(uint16_t)conf.rollPitchRate*tmp/500;

      prop1 = (uint16_t)prop1*prop2/100;

    } else {      // YAW

      rcCommand[axis] = tmp;

      prop1 = 100-(uint16_t)conf.yawRate*tmp/500;

    }

    dynP8[axis] = (uint16_t)conf.P8[axis]*prop1/100;

    dynD8[axis] = (uint16_t)conf.D8[axis]*prop1/100;

    if (rcData[axis]<MIDRC) rcCommand[axis] = -rcCommand[axis];

  }

  tmp = constrain(rcData[THROTTLE],MINCHECK,2000);

  tmp = (uint32_t)(tmp-MINCHECK)*1000/(2000-MINCHECK); // [MINCHECK;2000] -> [0;1000]

  tmp2 = tmp/100;

  rcCommand[THROTTLE] = lookupThrottleRC[tmp2] + (tmp-tmp2*100) * (lookupThrottleRC[tmp2+1]-lookupThrottleRC[tmp2]) / 100; // [0;1000] -> expo -> [conf.minthrottle;MAXTHROTTLE]


  if(f.HEADFREE_MODE) { //to optimize

    float radDiff = (heading - headFreeModeHold) * 0.0174533f; // where PI/180 ~= 0.0174533

    float cosDiff = cos(radDiff);

    float sinDiff = sin(radDiff);

    int16_t rcCommand_PITCH = rcCommand[PITCH]*cosDiff + rcCommand[ROLL]*sinDiff;

    rcCommand[ROLL] =  rcCommand[ROLL]*cosDiff - rcCommand[PITCH]*sinDiff;

    rcCommand[PITCH] = rcCommand_PITCH;

  }


  #if defined(POWERMETER_HARD)

    uint16_t pMeterRaw;               // used for current reading

    static uint16_t psensorTimer = 0;

    if (! (++psensorTimer % PSENSORFREQ)) {

      pMeterRaw =  analogRead(PSENSORPIN);

      //lcdprint_int16(pMeterRaw); LCDcrlf();

      powerValue = ( conf.psensornull > pMeterRaw ? conf.psensornull - pMeterRaw : pMeterRaw - conf.psensornull); // do not use abs(), it would induce implicit cast to uint and overrun

      if ( powerValue < 333) {  // only accept reasonable values. 333 is empirical

      #ifdef LCD_TELEMETRY

        if (powerValue > powerMax) powerMax = powerValue;

      #endif

      } else {

        powerValue = 333;

      }

      pMeter[PMOTOR_SUM] += (uint32_t) powerValue;

    }

  #endif

  #if defined(BUZZER)

    #if defined(VBAT)

      static uint8_t vbatTimer = 0;

      static uint8_t ind = 0;

      uint16_t vbatRaw = 0;

      static uint16_t vbatRawArray[8];

      if (! (++vbatTimer % VBATFREQ)) {

        vbatRawArray[(ind++)%8] = analogRead(V_BATPIN);

        for (uint8_t i=0;i<8;i++) vbatRaw += vbatRawArray[i];

        vbat = (vbatRaw*2) / conf.vbatscale; // result is Vbatt in 0.1V steps

      }

    #endif

    alarmHandler(); // external buzzer routine that handles buzzer events globally now

  #endif


  #if defined(RX_RSSI)

    static uint8_t sig = 0;

    uint16_t rssiRaw = 0;

    static uint16_t rssiRawArray[8];

    rssiRawArray[(sig++)%8] = analogRead(RX_RSSI_PIN);

    for (uint8_t i=0;i<8;i++) rssiRaw += rssiRawArray[i];

    rssi = rssiRaw / 8;

  #endif


  if ( (calibratingA>0 && ACC ) || (calibratingG>0) ) { // Calibration phasis

    LEDPIN_TOGGLE;

  } else {

    if (f.ACC_CALIBRATED) {LEDPIN_OFF;}

    if (f.ARMED) {LEDPIN_ON;}

  }


  #if defined(LED_RING)

    static uint32_t LEDTime;

    if ( currentTime > LEDTime ) {

      LEDTime = currentTime + 50000;

      i2CLedRingState();

    }

  #endif


  #if defined(LED_FLASHER)

    auto_switch_led_flasher();

  #endif


  if ( currentTime > calibratedAccTime ) {

    if (! f.SMALL_ANGLES_25) {

      // the multi uses ACC and is not calibrated or is too much inclinated

      f.ACC_CALIBRATED = 0;

      LEDPIN_TOGGLE;

      calibratedAccTime = currentTime + 100000;

    } else {

      f.ACC_CALIBRATED = 1;

    }

  }


  #if !(defined(SPEKTRUM) && defined(PROMINI))  //Only one serial port on ProMini.  Skip serial com if Spektrum Sat in use. Note: Spek code will auto-call serialCom if GUI data detected on serial0.

    #if defined(GPS_PROMINI)

      if(GPS_Enable == 0) {serialCom();}

    #else

      serialCom();

    #endif

  #endif


  #if defined(POWERMETER)

    intPowerMeterSum = (pMeter[PMOTOR_SUM]/conf.pleveldiv);

    intPowerTrigger1 = conf.powerTrigger1 * PLEVELSCALE;

  #endif


  #ifdef LCD_TELEMETRY_AUTO

    static char telemetryAutoSequence []  = LCD_TELEMETRY_AUTO;

    static uint8_t telemetryAutoIndex = 0;

    static uint16_t telemetryAutoTimer = 0;

    if ( (telemetry_auto) && (! (++telemetryAutoTimer % LCD_TELEMETRY_AUTO_FREQ) )  ){

      telemetry = telemetryAutoSequence[++telemetryAutoIndex % strlen(telemetryAutoSequence)];

      LCDclear(); // make sure to clear away remnants

    }

  #endif

  #ifdef LCD_TELEMETRY

    static uint16_t telemetryTimer = 0;

    if (! (++telemetryTimer % LCD_TELEMETRY_FREQ)) {

      #if (LCD_TELEMETRY_DEBUG+0 > 0)

        telemetry = LCD_TELEMETRY_DEBUG;

      #endif

      if (telemetry) lcd_telemetry();

    }

  #endif


  #if GPS & defined(GPS_LED_INDICATOR)       // modified by MIS to use STABLEPIN LED for number of sattelites indication

    static uint32_t GPSLEDTime;              // - No GPS FIX -> LED blink at speed of incoming GPS frames

    static uint8_t blcnt;                    // - Fix and sat no. bellow 5 -> LED off

    if(currentTime > GPSLEDTime) {           // - Fix and sat no. >= 5 -> LED blinks, one blink for 5 sat, two blinks for 6 sat, three for 7 ...

      if(f.GPS_FIX && GPS_numSat >= 5) {

        if(++blcnt > 2*GPS_numSat) blcnt = 0;

        GPSLEDTime = currentTime + 150000;

        if(blcnt >= 10 && ((blcnt%2) == 0)) {STABLEPIN_ON;} else {STABLEPIN_OFF;}

      }else{

        if((GPS_update == 1) && !f.GPS_FIX) {STABLEPIN_ON;} else {STABLEPIN_OFF;}

        blcnt = 0;

      }

    }

  #endif


  #if defined(LOG_VALUES) && (LOG_VALUES >= 2)

    if (cycleTime > cycleTimeMax) cycleTimeMax = cycleTime; // remember highscore

    if (cycleTime < cycleTimeMin) cycleTimeMin = cycleTime; // remember lowscore

  #endif

  if (f.ARMED)  {

    #if defined(LCD_TELEMETRY) || defined(ARMEDTIMEWARNING) || defined(LOG_PERMANENT)

      armedTime += (uint32_t)cycleTime;

    #endif

    #if defined(VBAT)

      if ( (vbat > conf.no_vbat) && (vbat < vbatMin) ) vbatMin = vbat;

    #endif

    #ifdef LCD_TELEMETRY

      #if BARO

        if ( (BaroAlt > BAROaltMax) ) BAROaltMax = BaroAlt;

      #endif

    #endif

  }

}



void setup()

{

 #if !defined(GPS_PROMINI)

SerialOpen(0,SERIAL0_COM_SPEED);

    #if defined(PROMICRO)

SerialOpen(1,SERIAL1_COM_SPEED);

    #endif

    #if defined(MEGA)

SerialOpen(1,SERIAL1_COM_SPEED);

SerialOpen(2,SERIAL2_COM_SPEED);

SerialOpen(3,SERIAL3_COM_SPEED);

    #endif

  #endif

LEDPIN_PINMODE;

POWERPIN_PINMODE;

BUZZERPIN_PINMODE;

STABLEPIN_PINMODE;

POWERPIN_OFF;

initOutput();

  #ifdef MULTIPLE_CONFIGURATION_PROFILES

for(global_conf.currentSet=0; global_conf.currentSet<3; global_conf.currentSet++) {  // check all settings integrity

readEEPROM();

}

  #else

global_conf.currentSet=0;

readEEPROM();

  #endif

readGlobalSet();

readEEPROM();   // load current setting data

blinkLED(2,40,global_conf.currentSet+1);

configureReceiver();

  #if defined (PILOTLAMP)

PL_INIT;

  #endif

  #if defined(OPENLRSv2MULTI)

initOpenLRS();

  #endif

initSensors();

  #if defined(I2C_GPS) || defined(GPS_SERIAL) || defined(GPS_FROM_OSD)

GPS_set_pids();

  #endif

previousTime = micros();

  #if defined(GIMBAL)

calibratingA = 512;

  #endif

calibratingG = 512;

calibratingB = 200;  // 10 seconds init_delay + 200 * 25 ms = 15 seconds before ground pressure settles

  #if defined(POWERMETER)

for(uint8_t i=0;i<=PMOTOR_SUM;i++)

pMeter[i]=0;

  #endif

/************************************/

  #if defined(GPS_SERIAL)

GPS_SerialInit();

for(uint8_t i=0;i<=5;i++){

GPS_NewData();

LEDPIN_ON

delay(20);

LEDPIN_OFF

delay(80);

}

if(!GPS_Present){

SerialEnd(GPS_SERIAL);

SerialOpen(0,SERIAL0_COM_SPEED);

}

    #if !defined(GPS_PROMINI)

GPS_Present = 1;

    #endif

GPS_Enable = GPS_Present;

  #endif

/************************************/



  #if defined(I2C_GPS) || defined(TINY_GPS) || defined(GPS_FROM_OSD)

GPS_Enable = 1;

  #endif



  #if defined(LCD_ETPP) || defined(LCD_LCD03) || defined(OLED_I2C_128x64) || defined(LCD_TELEMETRY_STEP)

initLCD();

  #endif

  #ifdef LCD_TELEMETRY_DEBUG

telemetry_auto = 1;

  #endif

  #ifdef LCD_CONF_DEBUG

configurationLoop();

  #endif

  #ifdef LANDING_LIGHTS_DDR

init_landing_lights();

  #endif

ADCSRA |= _BV(ADPS2) ; ADCSRA &= ~_BV(ADPS1); ADCSRA &= ~_BV(ADPS0); // this speeds up analogRead without loosing too much resolution: http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1208715493/11

  #if defined(LED_FLASHER)

init_led_flasher();

led_flasher_set_sequence(LED_FLASHER_SEQUENCE);

  #endif

f.SMALL_ANGLES_25=1; // important for gyro only conf

  #ifdef LOG_PERMANENT

// read last stored set

readPLog();

plog.lifetime += plog.armed_time / 1000000;

plog.start++;  // #powercycle/reset/initialize events

// dump plog data to terminal

    #ifdef LOG_PERMANENT_SHOW_AT_STARTUP

dumpPLog(0);

    #endif

plog.armed_time = 0;   // lifetime in seconds

//plog.running = 0;  // toggle on arm & disarm to monitor for clean shutdown vs. powercut

  #endif


    pinMode(7,OUTPUT);

    digitalWrite(7,LOW);



debugmsg_append_str("initialization completed\n");

}


//------------------------------------------------------------------

void calibration_fun(void)

{

calibratingG = 512;

  #if GPS

GPS_reset_home_position();

  #endif

  #if BARO

calibratingB = 10;  // calibrate baro to new ground level (10 * 25 ms = ~250 ms non blocking)

  #endif

}

//------------------------------------------------------------------


// Unlock function

void go_arm() {



  if(calibratingG == 0 && f.ACC_CALIBRATED

  #if defined(FAILSAFE)

   // && failsafeCnt < 2

  #endif

    ) {

    if(!f.ARMED) { // arm now!

      digitalWrite(7,HIGH);

      delay(200);

      digitalWrite(7,LOW);

      f.ARMED = 1;



      flightState = flightState | 0x80;



      headFreeModeHold = heading;

      #if defined(VBAT)

        if (vbat > conf.no_vbat) vbatMin = vbat;

      #endif

      #ifdef LCD_TELEMETRY // reset some values when arming

        #if BARO

           BAROaltMax = BaroAlt;

        #endif

      #endif

      #ifdef LOG_PERMANENT

        plog.arm++;           // #arm events

        plog.running = 1;       // toggle on arm & disarm to monitor for clean shutdown vs. powercut

        // write now.

        writePLog();

      #endif

    }

  } else if(!f.ARMED) {

    blinkLED(2,255,1);

    alarmArray[8] = 1;

  }



  if (calibration_flag == 0) {

    calibration_flag = 1;

    calibration_fun();

  }

}


// Unlock function

void go_disarm() {



  if (f.ARMED) {

    digitalWrite(7,HIGH);

    delay(200);

    digitalWrite(7,LOW);

    f.ARMED = 0;



    flightState = flightState & 0x7f;



    #ifdef LOG_PERMANENT

      plog.disarm++;        // #disarm events

      plog.armed_time = armedTime ;   // lifetime in seconds

      if (failsafeEvents) plog.failsafe++;      // #acitve failsafe @ disarm

      if (i2c_errors_count > 10) plog.i2c++;           // #i2c errs @ disarm

      plog.running = 0;       // toggle @ arm & disarm to monitor for clean shutdown vs. powercut

      // write now.

      writePLog();

    #endif

  }

}

void servos2Neutral() {

  #ifdef TRI

    servo[5] = 1500; // we center the yaw servo in conf mode

    writeServos();

  #endif

  #ifdef FLYING_WING

    servo[0]  = conf.wing_left_mid;

    servo[1]  = conf.wing_right_mid;

    writeServos();

  #endif

  #ifdef AIRPLANE

    for(uint8_t i = 4; i<7 ;i++) servo[i] = 1500;

    writeServos();

  #endif

  #ifdef HELICOPTER

    servo[5] = YAW_CENTER;

    servo[3] = servo[4] = servo[6] = 1500;

    writeServos();

  #endif

}


// ******** Main Loop *********

void loop () {

  static uint8_t rcDelayCommand; // this indicates the number of time (multiple of RC measurement at 50Hz) the sticks must be maintained to run or switch off motors

  static uint8_t rcSticks;       // this hold sticks position for command combos

  uint8_t axis,i;

  int16_t error,errorAngle;

  int16_t delta,deltaSum;

  int16_t PTerm,ITerm,DTerm;

  int16_t PTermACC = 0 , ITermACC = 0 , PTermGYRO = 0 , ITermGYRO = 0;

  static int16_t lastGyro[3] = {0,0,0};

  static int16_t delta1[3],delta2[3];

  static int16_t errorGyroI[3] = {0,0,0};

  static int16_t errorAngleI[2] = {0,0};

  static uint32_t rcTime  = 0;

  static int16_t initialThrottleHold;

  static uint32_t timestamp_fixated = 0;


  #if defined(SPEKTRUM)

    if (spekFrameFlags == 0x01) readSpektrum();

  #endif

  #if defined(OPENLRSv2MULTI)

    Read_OpenLRS_RC();

  #endif


#if defined(AIR)

  serialCom();

#endif


  if (currentTime > rcTime ) { // 50Hz

    rcTime = currentTime + 20000;

    computeRC();

    // Failsafe routine - added by MIS

#if defined(AIR)

     rcData[0] = serialRcValue[0];

     rcData[1] = serialRcValue[1];

     rcData[2] = serialRcValue[2];

     rcData[3] = serialRcValue[3];

     rcData[4] = serialRcValue[4];

     rcData[5] = serialRcValue[5];

     rcData[6] = serialRcValue[6];

     rcData[7] = serialRcValue[7];

#endif



    #if defined(FAILSAFE)

      if ( failsafeCnt > (5*FAILSAFE_DELAY) && f.ARMED) {                  // Stabilize, and set Throttle to specified level

        for(i=0; i<3; i++) rcData[i] = MIDRC;                               // after specified guard time after RC signal is lost (in 0.1sec)



        if(rcData[THROTTLE] < conf.failsafe_throttle){

          rcData[THROTTLE] = MINTHROTTLE;

        }

        else{

          rcData[THROTTLE] = conf.failsafe_throttle;

        }



        if (failsafeCnt > 5*(FAILSAFE_DELAY+FAILSAFE_OFF_DELAY)) {          // Turn OFF motors after specified Time (in 0.1sec)

          go_disarm();     // This will prevent the copter to automatically rearm if failsafe shuts it down and prevents

          f.OK_TO_ARM = 0; // to restart accidentely by just reconnect to the tx - you will have to switch off first to rearm

        }

        failsafeEvents++;

      }

      if ( failsafeCnt > (5*FAILSAFE_DELAY) && !f.ARMED) {  //Turn of "Ok To arm to prevent the motors from spinning after repowering the RX with low throttle and aux to arm

          go_disarm();     // This will prevent the copter to automatically rearm if failsafe shuts it down and prevents

          f.OK_TO_ARM = 0; // to restart accidentely by just reconnect to the tx - you will have to switch off first to rearm

      }

      failsafeCnt++;

    #endif

    // end of failsafe routine - next change is made with RcOptions setting


    // ------------------ STICKS COMMAND HANDLER --------------------

    // checking sticks positions

    uint8_t stTmp = 0;

    for(i=0;i<4;i++) {

      stTmp >>= 2;

      if(rcData[i] > MINCHECK) stTmp |= 0x80;      // check for MIN

      if(rcData[i] < MAXCHECK) stTmp |= 0x40;      // check for MAX

    }

    if(stTmp == rcSticks) {

      if(rcDelayCommand<250) rcDelayCommand++;

    } else rcDelayCommand = 0;

    rcSticks = stTmp;



    // perform actions

    if (rcData[THROTTLE] <= MINCHECK) {            // THROTTLE at minimum

      errorGyroI[ROLL] = 0; errorGyroI[PITCH] = 0; errorGyroI[YAW] = 0;

      errorAngleI[ROLL] = 0; errorAngleI[PITCH] = 0;

      if (conf.activate[BOXARM] > 0) {             // Arming/Disarming via ARM BOX

        if ( rcOptions[BOXARM] && f.OK_TO_ARM )

go_arm();

        else if (f.ARMED)

go_disarm();

      }

    }

    if(rcDelayCommand == 20) {

      if(f.ARMED) {                   // actions during armed

        #ifdef ALLOW_ARM_DISARM_VIA_TX_YAW

          if (conf.activate[BOXARM] == 0 && rcSticks == THR_LO + YAW_LO + PIT_CE + ROL_CE) go_disarm();    // Disarm via YAW

        #endif

        #ifdef ALLOW_ARM_DISARM_VIA_TX_ROLL

          if (conf.activate[BOXARM] == 0 && rcSticks == THR_LO + YAW_CE + PIT_CE + ROL_LO) go_disarm();    // Disarm via ROLL

        #endif

      } else {                        // actions during not armed

        i=0;

        if (rcSticks == THR_LO + YAW_LO + PIT_LO + ROL_CE) {    // GYRO calibration

//------------------------------------------------------------

calibration_fun();

//------------------------------------------------------------

        }

        #if defined(INFLIGHT_ACC_CALIBRATION)

         else if (rcSticks == THR_LO + YAW_LO + PIT_HI + ROL_HI) {    // Inflight ACC calibration START/STOP

            if (AccInflightCalibrationMeasurementDone){                // trigger saving into eeprom after landing

              AccInflightCalibrationMeasurementDone = 0;

              AccInflightCalibrationSavetoEEProm = 1;

            }else{

              AccInflightCalibrationArmed = !AccInflightCalibrationArmed;

              #if defined(BUZZER)

               if (AccInflightCalibrationArmed) alarmArray[0]=2; else   alarmArray[0]=3;

              #endif

            }

         }

        #endif

        #ifdef MULTIPLE_CONFIGURATION_PROFILES

          if      (rcSticks == THR_LO + YAW_LO + PIT_CE + ROL_LO) i=1;    // ROLL left  -> Profile 1

          else if (rcSticks == THR_LO + YAW_LO + PIT_HI + ROL_CE) i=2;    // PITCH up   -> Profile 2

          else if (rcSticks == THR_LO + YAW_LO + PIT_CE + ROL_HI) i=3;    // ROLL right -> Profile 3

          if(i) {

            global_conf.currentSet = i-1;

            writeGlobalSet(0);

            readEEPROM();

            blinkLED(2,40,i);

            alarmArray[0] = i;

          }

        #endif

        if (rcSticks == THR_LO + YAW_HI + PIT_HI + ROL_CE) {            // Enter LCD config

          #if defined(LCD_CONF)

            configurationLoop(); // beginning LCD configuration

          #endif

          previousTime = micros();

        }

        #ifdef ALLOW_ARM_DISARM_VIA_TX_YAW

          else if (conf.activate[BOXARM] == 0 && rcSticks == THR_LO + YAW_HI + PIT_CE + ROL_CE) go_arm();      // Arm via YAW

        #endif

        #ifdef ALLOW_ARM_DISARM_VIA_TX_ROLL

          else if (conf.activate[BOXARM] == 0 && rcSticks == THR_LO + YAW_CE + PIT_CE + ROL_HI) go_arm();      // Arm via ROLL

        #endif

        #ifdef LCD_TELEMETRY_AUTO

          else if (rcSticks == THR_LO + YAW_CE + PIT_HI + ROL_LO) {              // Auto telemetry ON/OFF

            if (telemetry_auto) {

              telemetry_auto = 0;

              telemetry = 0;

            } else

              telemetry_auto = 1;

          }

        #endif

        #ifdef LCD_TELEMETRY_STEP

          else if (rcSticks == THR_LO + YAW_CE + PIT_HI + ROL_HI) {              // Telemetry next step

            telemetry = telemetryStepSequence[++telemetryStepIndex % strlen(telemetryStepSequence)];

            #ifdef OLED_I2C_128x64

              if (telemetry != 0) i2c_OLED_init();

            #endif

            LCDclear();

          }

        #endif

        else if (rcSticks == THR_HI + YAW_LO + PIT_LO + ROL_CE) calibratingA=512;     // throttle=max, yaw=left, pitch=min

        else if (rcSticks == THR_HI + YAW_HI + PIT_LO + ROL_CE) f.CALIBRATE_MAG = 1;  // throttle=max, yaw=right, pitch=min

        i=0;

        if      (rcSticks == THR_HI + YAW_CE + PIT_HI + ROL_CE) {conf.angleTrim[PITCH]+=2; i=1;}

        else if (rcSticks == THR_HI + YAW_CE + PIT_LO + ROL_CE) {conf.angleTrim[PITCH]-=2; i=1;}

        else if (rcSticks == THR_HI + YAW_CE + PIT_CE + ROL_HI) {conf.angleTrim[ROLL] +=2; i=1;}

        else if (rcSticks == THR_HI + YAW_CE + PIT_CE + ROL_LO) {conf.angleTrim[ROLL] -=2; i=1;}

        if (i) {

          writeParams(1);

          rcDelayCommand = 0;    // allow autorepetition

          #if defined(LED_RING)

            blinkLedRing();

          #endif

        }

      }

    }

    #if defined(LED_FLASHER)

      led_flasher_autoselect_sequence();

    #endif



    #if defined(INFLIGHT_ACC_CALIBRATION)

      if (AccInflightCalibrationArmed && f.ARMED && rcData[THROTTLE] > MINCHECK && !rcOptions[BOXARM] ){ // Copter is airborne and you are turning it off via boxarm : start measurement

        InflightcalibratingA = 50;

        AccInflightCalibrationArmed = 0;

      }

      if (rcOptions[BOXCALIB]) {      // Use the Calib Option to activate : Calib = TRUE Meausrement started, Land and Calib = 0 measurement stored

        if (!AccInflightCalibrationActive && !AccInflightCalibrationMeasurementDone){

          InflightcalibratingA = 50;

        }

      }else if(AccInflightCalibrationMeasurementDone && !f.ARMED){

        AccInflightCalibrationMeasurementDone = 0;

        AccInflightCalibrationSavetoEEProm = 1;

      }

    #endif


    uint16_t auxState = 0;

    for(i=0;i<4;i++)

      auxState |= (rcData[AUX1+i]<1300)<<(3*i) | (1300<rcData[AUX1+i] && rcData[AUX1+i]<1700)<<(3*i+1) | (rcData[AUX1+i]>1700)<<(3*i+2);

    for(i=0;i<CHECKBOXITEMS;i++)

      rcOptions[i] = (auxState & conf.activate[i])>0;


    // note: if FAILSAFE is disable, failsafeCnt > 5*FAILSAFE_DELAY is always false

    #if ACC

      if ( rcOptions[BOXANGLE] || (failsafeCnt > 5*FAILSAFE_DELAY) ) {

        // bumpless transfer to Level mode

        if (!f.ANGLE_MODE) {

          errorAngleI[ROLL] = 0; errorAngleI[PITCH] = 0;

          f.ANGLE_MODE = 1;

        }

      } else {

        // failsafe support

        f.ANGLE_MODE = 0;

      }

      if ( rcOptions[BOXHORIZON] ) {

        f.ANGLE_MODE = 0;

        if (!f.HORIZON_MODE) {

          errorAngleI[ROLL] = 0; errorAngleI[PITCH] = 0;

          f.HORIZON_MODE = 1;

        }

      } else {

        f.HORIZON_MODE = 0;

      }

    #endif


    if (rcOptions[BOXARM] == 0) f.OK_TO_ARM = 1;

    #if !defined(GPS_LED_INDICATOR)

      if (f.ANGLE_MODE || f.HORIZON_MODE) {STABLEPIN_ON;} else {STABLEPIN_OFF;}

    #endif


    #if BARO

      #if (!defined(SUPPRESS_BARO_ALTHOLD))

        if (rcOptions[BOXBARO]) {

            if (!f.BARO_MODE) {

              f.BARO_MODE = 1;

              AltHold = EstAlt;

              initialThrottleHold = rcCommand[THROTTLE];

              errorAltitudeI = 0;

              BaroPID=0;

            }

        } else {

            f.BARO_MODE = 0;

        }

      #endif

      #ifdef VARIOMETER

        if (rcOptions[BOXVARIO]) {

          if (!f.VARIO_MODE) {

            f.VARIO_MODE = 1;

          }

        } else {

          f.VARIO_MODE = 0;

        }

      #endif

    #endif

    #if MAG

      if (rcOptions[BOXMAG]) {

        if (!f.MAG_MODE) {

          f.MAG_MODE = 1;

          magHold = heading;

        }

      } else {

        f.MAG_MODE = 0;

      }

      if (rcOptions[BOXHEADFREE]) {

        if (!f.HEADFREE_MODE) {

          f.HEADFREE_MODE = 1;

        }

      } else {

        f.HEADFREE_MODE = 0;

      }

      if (rcOptions[BOXHEADADJ]) {

        headFreeModeHold = heading; // acquire new heading

      }

    #endif



    #if GPS

      static uint8_t GPSNavReset = 1;

      if (f.GPS_FIX && GPS_numSat >= 5 ) {

        if (rcOptions[BOXGPSHOME]) {  // if both GPS_HOME & GPS_HOLD are checked => GPS_HOME is the priority

          if (!f.GPS_HOME_MODE)  {

            f.GPS_HOME_MODE = 1;

            f.GPS_HOLD_MODE = 0;

            GPSNavReset = 0;

            #if defined(I2C_GPS)

              GPS_I2C_command(I2C_GPS_COMMAND_START_NAV,0);        //waypoint zero

            #else // SERIAL

              GPS_set_next_wp(&GPS_home[LAT],&GPS_home[LON]);

              nav_mode    = NAV_MODE_WP;

            #endif

          }

        } else {

          f.GPS_HOME_MODE = 0;

          if (rcOptions[BOXGPSHOLD] && abs(rcCommand[ROLL])< AP_MODE && abs(rcCommand[PITCH]) < AP_MODE) {

            if (!f.GPS_HOLD_MODE) {

              f.GPS_HOLD_MODE = 1;

              GPSNavReset = 0;

              #if defined(I2C_GPS)

                GPS_I2C_command(I2C_GPS_COMMAND_POSHOLD,0);

              #else

                GPS_hold[LAT] = GPS_coord[LAT];

                GPS_hold[LON] = GPS_coord[LON];

                GPS_set_next_wp(&GPS_hold[LAT],&GPS_hold[LON]);

                nav_mode = NAV_MODE_POSHOLD;

              #endif

            }

          } else {

            f.GPS_HOLD_MODE = 0;

            // both boxes are unselected here, nav is reset if not already done

            if (GPSNavReset == 0 ) {

              GPSNavReset = 1;

              GPS_reset_nav();

            }

          }

        }

      } else {

        f.GPS_HOME_MODE = 0;

        f.GPS_HOLD_MODE = 0;

        #if !defined(I2C_GPS)

          nav_mode = NAV_MODE_NONE;

        #endif

      }

    #endif



    #if defined(FIXEDWING) || defined(HELICOPTER)

      if (rcOptions[BOXPASSTHRU]) {f.PASSTHRU_MODE = 1;}

      else {f.PASSTHRU_MODE = 0;}

    #endif



  } else { // not in rc loop

    static uint8_t taskOrder=0; // never call all functions in the same loop, to avoid high delay spikes

    if(taskOrder>4) taskOrder-=5;

    switch (taskOrder) {

      case 0:

        taskOrder++;

        #if MAG

          if (Mag_getADC()) break; // max 350 µs (HMC5883) // only break when we actually did something

        #endif

      case 1:

        taskOrder++;

        #if BARO

          if (Baro_update() != 0 ) break;

        #endif

      case 2:

        taskOrder++;

        break;



        #if BARO

          if (getEstimatedAltitude() !=0) break;

        #endif



      case 3:

        taskOrder++;

        #if GPS

          if(GPS_Enable) GPS_NewData();

          break;

        #endif

      case 4:

        taskOrder++;

        #if SONAR

          Sonar_update();

        #endif

        #ifdef LANDING_LIGHTS_DDR

          auto_switch_landing_lights();

        #endif

        #ifdef VARIOMETER

          if (f.VARIO_MODE) vario_signaling();

        #endif



        break;

    }

  }



  computeIMU();

  // Measure loop rate just afer reading the sensors

  currentTime = micros();

  cycleTime = currentTime - previousTime;

  previousTime = currentTime;


  #ifdef CYCLETIME_FIXATED

    if (conf.cycletime_fixated) {

      if ((micros()-timestamp_fixated)>conf.cycletime_fixated) {

      } else {

         while((micros()-timestamp_fixated)<conf.cycletime_fixated) ; // waste away

      }

      timestamp_fixated=micros();

    }

  #endif

  //***********************************

  //**** Experimental FlightModes *****

  //***********************************

  #if defined(ACROTRAINER_MODE)

    if(f.ANGLE_MODE){

      if (abs(rcCommand[ROLL]) + abs(rcCommand[PITCH]) >= ACROTRAINER_MODE ) {

        f.ANGLE_MODE=0;

        f.HORIZON_MODE=0;

        f.MAG_MODE=0;

        f.BARO_MODE=0;

        f.GPS_HOME_MODE=0;

        f.GPS_HOLD_MODE=0;

      }

    }

  #endif


 //***********************************



  #if MAG

    if (abs(rcCommand[YAW]) <70 && f.MAG_MODE) {

      int16_t dif = heading - magHold;

      if (dif <= - 180) dif += 360;

      if (dif >= + 180) dif -= 360;

      if ( f.SMALL_ANGLES_25 ) rcCommand[YAW] -= dif*conf.P8[PIDMAG]>>5;

    } else magHold = heading;

  #endif


  #if BARO && (!defined(SUPPRESS_BARO_ALTHOLD))

    if (f.BARO_MODE) {

      static uint8_t isAltHoldChanged = 0;

      #if defined(ALTHOLD_FAST_THROTTLE_CHANGE)

        if (abs(rcCommand[THROTTLE]-initialThrottleHold) > ALT_HOLD_THROTTLE_NEUTRAL_ZONE) {

         //errorAltitudeI = 0;

          isAltHoldChanged = 1;

          rcCommand[THROTTLE] += (rcCommand[THROTTLE] > initialThrottleHold) ? -ALT_HOLD_THROTTLE_NEUTRAL_ZONE : ALT_HOLD_THROTTLE_NEUTRAL_ZONE;

         // initialThrottleHold += (rcCommand[THROTTLE] > initialThrottleHold) ? -ALT_HOLD_THROTTLE_NEUTRAL_ZONE : ALT_HOLD_THROTTLE_NEUTRAL_ZONE;; //++hex nano

        } else {

          if (isAltHoldChanged) {

            AltHold = EstAlt;

            isAltHoldChanged = 0;

          }

          rcCommand[THROTTLE] = initialThrottleHold + BaroPID;

        }

      #else

        static int16_t AltHoldCorr = 0;

        if (abs(rcCommand[THROTTLE]-initialThrottleHold)>ALT_HOLD_THROTTLE_NEUTRAL_ZONE) {

          // Slowly increase/decrease AltHold proportional to stick movement ( +100 throttle gives ~ +50 cm in 1 second with cycle time about 3-4ms)

          AltHoldCorr+= rcCommand[THROTTLE] - initialThrottleHold;

          if(abs(AltHoldCorr) > 500) {

            AltHold += AltHoldCorr/500;

            AltHoldCorr %= 500;

          }

          //errorAltitudeI = 0;

          isAltHoldChanged = 1;

        } else if (isAltHoldChanged) {

          AltHold = EstAlt;

          isAltHoldChanged = 0;

        }

        rcCommand[THROTTLE] = initialThrottleHold + BaroPID;

      #endif

    }

  #endif

  #if GPS

    if ( (f.GPS_HOME_MODE || f.GPS_HOLD_MODE) && f.GPS_FIX_HOME ) {

      float sin_yaw_y = sin(heading*0.0174532925f);

      float cos_yaw_x = cos(heading*0.0174532925f);

      #if defined(NAV_SLEW_RATE)

        nav_rated[LON]   += constrain(wrap_18000(nav[LON]-nav_rated[LON]),-NAV_SLEW_RATE,NAV_SLEW_RATE);

        nav_rated[LAT]   += constrain(wrap_18000(nav[LAT]-nav_rated[LAT]),-NAV_SLEW_RATE,NAV_SLEW_RATE);

        GPS_angle[ROLL]   = (nav_rated[LON]*cos_yaw_x - nav_rated[LAT]*sin_yaw_y) /10;

        GPS_angle[PITCH]  = (nav_rated[LON]*sin_yaw_y + nav_rated[LAT]*cos_yaw_x) /10;

      #else

        GPS_angle[ROLL]   = (nav[LON]*cos_yaw_x - nav[LAT]*sin_yaw_y) /10;

        GPS_angle[PITCH]  = (nav[LON]*sin_yaw_y + nav[LAT]*cos_yaw_x) /10;

      #endif

    } else {

      GPS_angle[ROLL]  = 0;

      GPS_angle[PITCH] = 0;

    }

  #endif


  //**** PITCH & ROLL & YAW PID ****

  int16_t prop;

  prop = min(max(abs(rcCommand[PITCH]),abs(rcCommand[ROLL])),500); // range [0;500]


  for(axis=0;axis<3;axis++) {

    if ((f.ANGLE_MODE || f.HORIZON_MODE) && axis<2 ) { // MODE relying on ACC

      // 50 degrees max inclination

      errorAngle = constrain((rcCommand[axis]<<1) + GPS_angle[axis],-500,+500) - angle[axis] + conf.angleTrim[axis]; //16 bits is ok here

      PTermACC = ((int32_t)errorAngle*conf.P8[PIDLEVEL])>>7;                          // 32 bits is needed for calculation: errorAngle*P8[PIDLEVEL] could exceed 32768   16 bits is ok for result

      PTermACC = constrain(PTermACC,-conf.D8[PIDLEVEL]*5,+conf.D8[PIDLEVEL]*5);


      errorAngleI[axis]     = constrain(errorAngleI[axis]+errorAngle,-10000,+10000);    // WindUp     //16 bits is ok here

      ITermACC              = ((int32_t)errorAngleI[axis]*conf.I8[PIDLEVEL])>>12;            // 32 bits is needed for calculation:10000*I8 could exceed 32768   16 bits is ok for result

    }

    if ( !f.ANGLE_MODE || f.HORIZON_MODE || axis == 2 ) { // MODE relying on GYRO or YAW axis

      if (abs(rcCommand[axis])<500) error =          (rcCommand[axis]<<6)/conf.P8[axis] ; // 16 bits is needed for calculation: 500*64 = 32000      16 bits is ok for result if P8>5 (P>0.5)

                               else error = ((int32_t)rcCommand[axis]<<6)/conf.P8[axis] ; // 32 bits is needed for calculation


      error -= gyroData[axis];


      PTermGYRO = rcCommand[axis];



      errorGyroI[axis]  = constrain(errorGyroI[axis]+error,-16000,+16000);         // WindUp   16 bits is ok here

      if (abs(gyroData[axis])>640) errorGyroI[axis] = 0;

      ITermGYRO = ((errorGyroI[axis]>>7)*conf.I8[axis])>>6;                        // 16 bits is ok here 16000/125 = 128 ; 128*250 = 32000

    }

    if ( f.HORIZON_MODE && axis<2) {

      PTerm = ((int32_t)PTermACC*(512-prop) + (int32_t)PTermGYRO*prop)>>9;         // the real factor should be 500, but 512 is ok

      ITerm = ((int32_t)ITermACC*(512-prop) + (int32_t)ITermGYRO*prop)>>9;

    } else {

      if ( f.ANGLE_MODE && axis<2) {

        PTerm = PTermACC;

        ITerm = ITermACC;

      } else {

        PTerm = PTermGYRO;

        ITerm = ITermGYRO;

      }

    }


    PTerm -= ((int32_t)gyroData[axis]*dynP8[axis])>>6; // 32 bits is needed for calculation


    delta          = gyroData[axis] - lastGyro[axis];  // 16 bits is ok here, the dif between 2 consecutive gyro reads is limited to 800

    lastGyro[axis] = gyroData[axis];

    deltaSum       = delta1[axis]+delta2[axis]+delta;

    delta2[axis]   = delta1[axis];

    delta1[axis]   = delta;



    DTerm = ((int32_t)deltaSum*dynD8[axis])>>5;        // 32 bits is needed for calculation



    axisPID[axis] =  PTerm + ITerm - DTerm;

  }


  mixTable();

  writeServos();

  writeMotors();

}
