FPGA/OrCAD (=VHDL)

OrCAD (=VHDL)

ElectricShock 2017. 5. 18. 15:36

Favicon of search.naver.com [VHDL]


http://students.uta.edu/rx/rxr5243/tutorials/orcad/vhdlsims.htm


Go to Start --> Programs -->OrCAD Release 9.1 -->Capture CIS

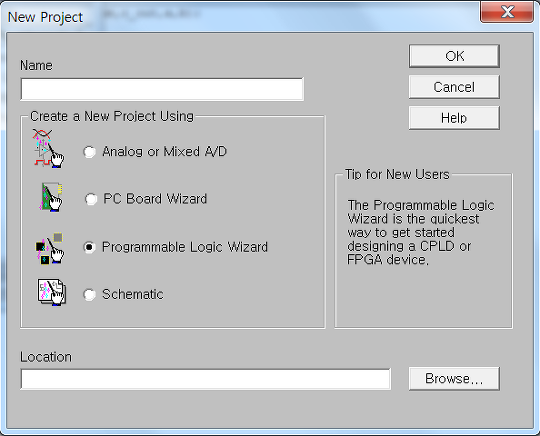

Go to File -->New -->Project...
Select Programmable Logic Wizard
Give a suitable name and location for your project.

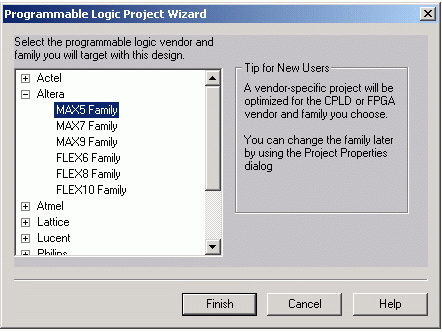

▼Altera 지원가능 칩은 MAX5, 7, 9 그리고 FLEX6,8,10 이다.
