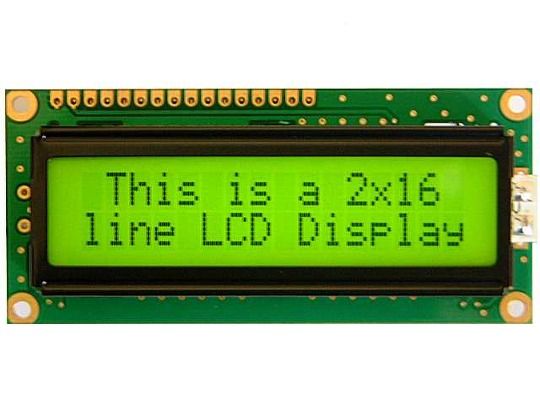

Hi-Tech LCD Header

ElectricShock 2017. 1. 31. 19:54

https://electrosome.com/interfacing-lcd-with-pic-microcontroller-hi-tech-c/


Interfacing-LCD-with-PIC-Microcontroller-Hi-Tech-C.zip

lcd.h

▼▼▼▼▼

//LCD Functions Developed by electroSome


#ifndef D0

#define D0 RB0

#define D1 RB1

#define D2 RB2

#define D3 RB3

#endif


//LCD 8 Bit Interfacing Functions

void Lcd8_Port(char a)

{

if(a & 1)

D0 = 1;

else

D0 = 0;

if(a & 2)

D1 = 1;

else

D1 = 0;

if(a & 4)

D2 = 1;

else

D2 = 0;

if(a & 8)

D3 = 1;

else

D3 = 0;

if(a & 16)

D4 = 1;

else

D4 = 0;


if(a & 32)

D5 = 1;

else

D5 = 0;

if(a & 64)

D6 = 1;

else

D6 = 0;

if(a & 128)

D7 = 1;

else

D7 = 0;

}

void Lcd8_Cmd(char a)

  RS = 0;             // => RS = 0

  Lcd8_Port(a);             //Data transfer

  EN  = 1;             // => E = 1

  __delay_ms(5);

  EN  = 0;             // => E = 0

}


Lcd8_Clear()

{

 Lcd8_Cmd(1);

}


void Lcd8_Set_Cursor(char a, char b)

{

if(a == 1)

 Lcd8_Cmd(0x80 + b);

else if(a == 2)

Lcd8_Cmd(0xC0 + b);

}


void Lcd8_Init()

{

Lcd8_Port(0x00);

RS = 0;

__delay_ms(25);

///////////// Reset process from datasheet /////////

  Lcd8_Cmd(0x30);

__delay_ms(5);

  Lcd8_Cmd(0x30);

__delay_ms(15);

  Lcd8_Cmd(0x30);

  /////////////////////////////////////////////////////

  Lcd8_Cmd(0x38);    //function set

  Lcd8_Cmd(0x0C);    //display on,cursor off,blink off

  Lcd8_Cmd(0x01);    //clear display

  Lcd8_Cmd(0x06);    //entry mode, set increment

}


void Lcd8_Write_Char(char a)

{

   RS = 1;             // => RS = 1

   Lcd8_Port(a);             //Data transfer

   EN  = 1;             // => E = 1

  __delay_ms(4);

   EN  = 0;             // => E = 04

}


void Lcd8_Write_String(char *a)

{

int i;

for(i=0;a[i]!='\0';i++)

Lcd8_Write_Char(a[i]);

}


void Lcd8_Shift_Right()

{

Lcd8_Cmd(0x1C);

}


void Lcd8_Shift_Left()

{

Lcd8_Cmd(0x18);

}

//End LCD 8 Bit Interfacing Functions


//LCD 4 Bit Interfacing Functions


void Lcd4_Port(char a)

{

if(a & 1)

D4 = 1;

else

D4 = 0;

if(a & 2)

D5 = 1;

else

D5 = 0;

if(a & 4)

D6 = 1;

else

D6 = 0;

if(a & 8)

D7 = 1;

else

D7 = 0;

}

void Lcd4_Cmd(char a)

RS = 0;             // => RS = 0

Lcd4_Port(a);

EN  = 1;             // => E = 1

  __delay_ms(4);

  EN  = 0;             // => E = 0

}


Lcd4_Clear()

{

Lcd4_Cmd(0);

Lcd4_Cmd(1);

}


void Lcd4_Set_Cursor(char a, char b)

{

char temp,z,y;

if(a == 1)

{

 temp = 0x80 + b;

z = temp>>4;

y = (0x80+b) & 0x0F;

Lcd4_Cmd(z);

Lcd4_Cmd(y);

}

else if(a == 2)

{

temp = 0xC0 + b;

z = temp>>4;

y = (0xC0+b) & 0x0F;

Lcd4_Cmd(z);

Lcd4_Cmd(y);

}

}


void Lcd4_Init()

{

Lcd4_Port(0x00);

   __delay_ms(20);

  Lcd4_Cmd(0x03);

__delay_ms(5);

  Lcd4_Cmd(0x03);

__delay_ms(11);

  Lcd4_Cmd(0x03);

  /////////////////////////////////////////////////////

  Lcd4_Cmd(0x02);

Lcd4_Cmd(0x02);

  Lcd4_Cmd(0x08);

Lcd4_Cmd(0x00);

Lcd4_Cmd(0x0C);

  Lcd4_Cmd(0x00);

  Lcd4_Cmd(0x06);

}


void Lcd4_Write_Char(char a)

{

   char temp,y;

   temp = a&0x0F;

   y = a&0xF0;

RS = 1;             // => RS = 1

   Lcd4_Port(y>>4);             //Data transfer

EN = 1;

__delay_ms(5);

EN = 0;

Lcd4_Port(temp);

EN = 1;

__delay_ms(5);

EN = 0;

}


void Lcd4_Write_String(char *a)

{

int i;

for(i=0;a[i]!='\0';i++)

Lcd4_Write_Char(a[i]);

}


void Lcd4_Shift_Right()

{

Lcd4_Cmd(0x01);

Lcd4_Cmd(0x0C);

}


void Lcd4_Shift_Left()

{

Lcd4_Cmd(0x01);

Lcd4_Cmd(0x08);

}

//End LCD 4 Bit Interfacing Functions

▲▲▲▲▲
