LCD TouchScreen (LG12864F)

LG12864F LMDWH6V-TP 1442 RC

LG12864F-LMDWH6V-TP.pdf

1	/CS1	Chip Select. Acrive "L"
2	/RES	Reset Signal. Active "L"
3	A0	H:Display Data  L:Instruction Code
4	/WR(R/W)	/WR for 80 MPU, R/W for 68 MPU
5	/RD(E)	/RD for 80 MPU, E for 68 MPU
6	D0	Data Bus
7	D1	"
8	D2	"
9	D3	"
10	D4	"
11	D5	"
12	D6(SCL)	"
13	D7(SI)	"
14	VDD	Power Supply for Logic & Booster
15	VSS	GND
16	Vout	DC/DC voltage converter output
17	CAP 3P	Capacitor 3 positive connection
18	CAP 1N	Capacitor 1 negative connection
19	CAP 1P	Capacitor 1
20	CAP 2P	Capacitor 2
21	CAP 2N	Capacitor 2
22	CAP 4P	Capacitor 4
23	V4	Power Supply for LCD drive
24	V3	"
25	V2	"
26	V1	"
27	V0	"
28	NC	No Connection
29	C86	H:6800 MPU   L:8080 MPU
30	P/S	H:Parallel L:Serial

▲

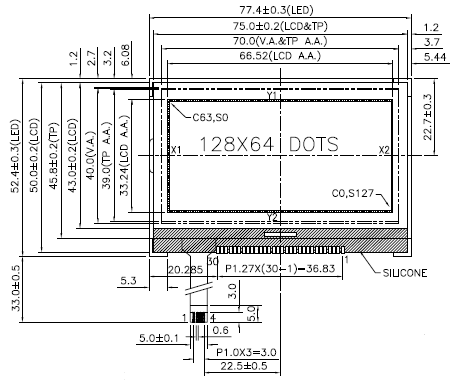

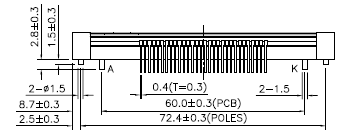

전체 가로길이 77.4mm

전체 세로길이 52.0mm

30핀 전체길이 36.83mm
