Brushless Motor Driver (L6235N)

Brushless Motor Driver (L6235N)

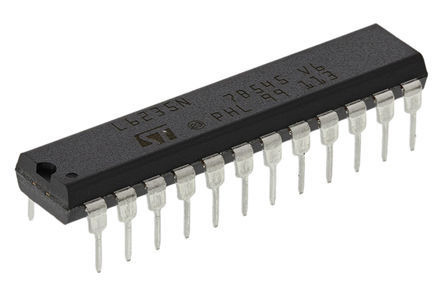

▼외형

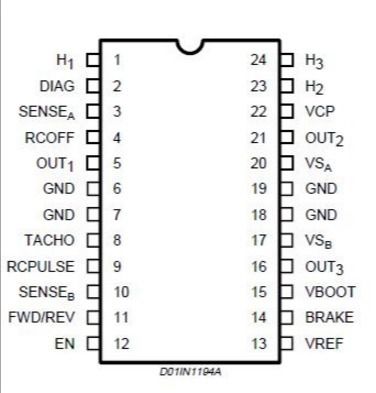

▼PinOut

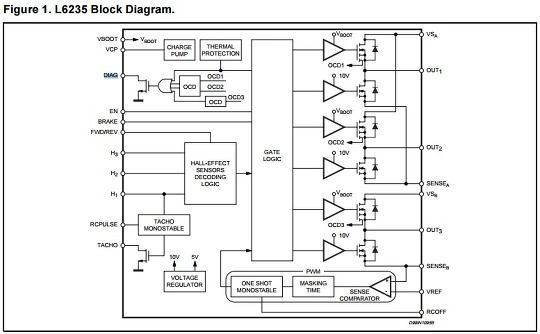

▼내부 Block Diagram

The typical current drawn by the Vboot pin is 1.85mA.

A capacitor connected between EN and DIAG pins and GND is also recommended. (11쪽)

L6235N(Three_Phase_Brushless_DC_Motor_Driver).pdf

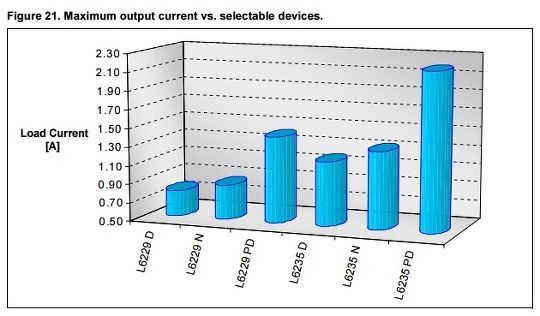

▼최대 출력전류

Maximum output current according to Selectable Devices.

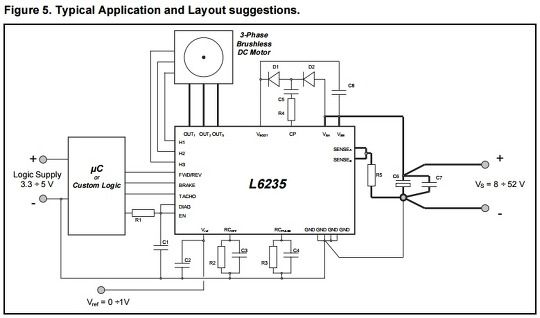

▼L6235 Application

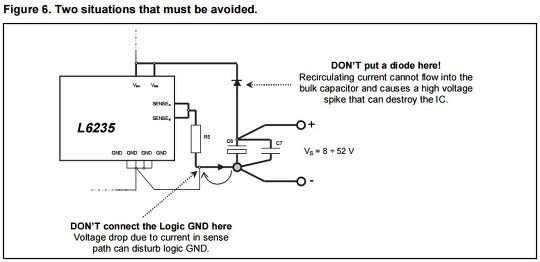

▼꼭 피해야할 상황들

Recirculating current cannot flow into the bulk capacitor and causes a high voltage spike that can destroy the IC.

Voltage drop due to current in sense path can disturb logic GND.
